Running Windows from RAM

My instructions for running Windows out of RAM, instead of a HDD or SSD.

Specifically, I used free software and other free stuff you can download from the internet, and made Windows Server 2012 R2 load into, and run from the ram in my PC.

These instructions were mostly performed from Windows 7.
I believe they will work on Windows 7, 8 or 10, and maybe Vista.
One the the main utilities I used, EasyBCD will NOT run on Server 2012.
I find it nice to be able to boot into Windows7 to do stuff non audio related, and then boot into Server 2012 to listen to music.
FYI, it seems like you can pick up cheap licenses for windows 10 these days if you're willing to download the installation files, and make you own bootable USB installation stick..

These instruction were performed on my audio PC, the PC that I will run the VHD on.
A VHD is a file that looks like a hard drive containing an operating system.
I think you need to use the PC you want to run the VHD to do this, but I'm not sure.  I think when you install windows, it looks at the PC it is installing on.

It took a little while to figure things out, but with these instructions it should be fairly easy to do what I did.

I’ll start with a little summary of what you need to do
1.      Make a VHD file based on the OS of your choice.  I used Windows Server 2012 R2 as my OS.
2.     Use a program called easyBCD to setup boot files to allow booting from the VHD.  easyBCD makes it easy to have multiple options for bootup.  I would set it up to boot from either windows 7 or the VHD file.
3.     Make some changes to the VHD to allow booting from RAM.  You need to install a special driver, Firadisk.  Firadisk is not signed, so you need to do a few things so Windows will boot with Firadisk installed.
4.     Use easyBCD to add NeoGrub to the boot up sequence.  Configure NeoGrub to boot the VHD from ram.

WARNING:
At some point, I "broke" my windows 7 (couldn't boot up from it), and had to reinstall windows 7.  It was because I was experimenting, and I think it is unlikely, if you follow these instructions, that you will break your windows 7.
But I wanted to warn people it is possible, you are messing with the boot up stuff of your computer.

What you need:
1.     The installation files for the OS you are going to run from RAM.
I am using Windows Server 2012 R2 datacenter (got a fairly cheap license for it on ebay).
If you have a ISO image of the Windows installation files, you can extract the files from the image.  I'm not including how to do this, the instructions are available on the internet by searching.  There are free utilities available to help.
I had a bootable USB stick with the windows 7 installation files, I used this to install windows 7 originally, and kept it around just in case.
2.     Windows 7, or later, on a disk drive you can run from.
As I said before, I used Windows 7 but I believe you can use a later version.
3.     Enough RAM.
My PC has 16G of RAM.  Not sure if you can do it with less, 12G might work, but I can’t see 8G.   Fortunately, RAM is much cheaper these days, so 16G is relatively affordable.  With 16G, you can run the OS from RAM without worrying about making the OS smaller, and possible breaking thinks when you shrink the OS.
4.     EasyBCD
EasyBCD
Go to the bottom of the page, click on the Register (for the free version).  It will take you to a download page, and you can click on download.  You don't have to register if you don't want to.
5.     Firadisk and other files from WinRAM page
Download Firadisk from here, its towards the end of the first post
Winram download
Go there, and select download.
6.     WinNTSetup
http://www.msfn.org/board/topic/149612-winntsetup-v386/
Required to make the VHD
7.     RMPrepUSB
http://www.rmprepusb.com/documents/release-2-0
Required to make the VHD.  Go down a ways, until you see a bunch of red “Download” on the left side of the screen.
Download the first one, “Install RMPretUSB_Full_v2.1.7.30.
install
8.     Bootice V1.3.2 x64 (optional)
Download bootice 64-bit v1.3.2
I used this program to help me figure things out, and fix things.   I don't have any steps that require it now, but it was useful to have for me.

Instructions I used here

A useful thread is here

Problems and things that don't work is towards the bottom, after the install procedure.

Using this guide

When I say "click Start", or Start, it means click this symbol

Its normally in the bottom left of your screen


Acronyms used
DD       Disk Drive (can be either HDD or SSD)
HDD    Hard Disk Drive
OS        Operating System (Windows 7, Windows 8, Windows Server 2012 R2, etc)
SSD      Solid State Drive
VHD     Virtual Hard Drive


Setup your desktop and PC
Some basic setup stuff you need to do, to be able to follow the rest of these instructions.

 Add Computer Icon
If you don't have a Computer icon on your desktop:
Click Start, right click on the word "Computer"
Select "Show on Desktop"
It should add a icon like the one pictured here to your desktop.










Change to view hidden and system files
Double click the Computer icon, click on Organize, (top left), then  "Folder and search options"
Click View (top), then click dot by "Show hidden files, folders, and drives.
Uncheck "Hide protected operating system files (Recommended).

Say Yes, then Apply and OK.



Add command prompt to start menu (optional)
Click Start, select All Programs, accessories (folder), right click Command Prompt, Pin to Start Menu
To run the command prompt, you should right click and run as administrator.


Clear up space on Windows 7 disk drive (optional)
Disable hibernation because this creates a large hiberfil.sys file (if you have a lot of RAM, 12G in my case).
For an audio PC, I don't see why you would hibernate it.
Start, right click command prompt, Run as administrator, yes
powercfg.exe /hibernate off
The hiberfil.sys file should be gone now
exit to close the command window

Shrink pagefile.sys file
Double click on Computer, System Properties, Advanced system settings (on left side), settings box by performance, advanced, Change (by Virtual memory),
uncheck automatically mange paging file size for all drives, custom size.
I set the initial and maximum size to 1000 mb, or 1 gig.
Select OK, ok, apply, ok, ok restart now (you don't have to, but I did.)
open you C drive in file explorer, and pagefile.sys should be 1,024,000 kb in size now.
At this point, used space on my c drive was 11.1 GB
Close all windows


Make the Server2012 VHD
I followed the beginning of these instructions, mostly the first 8 pages.  I used them to make the VHD of Server 2012 R2.


Its translated from German, and some of the screenshots are in German, but I was able to follow it fine.

But there are some hints, and info on how I did it.
I have duplicated some of the steps, but not all of them.
So if there is something that looks like its missing, look at the pdf and it should have the info.

page 2:
What is needed:
I used newer versions of RMPrepUSB, WinNTSetup and EasyBCD.  They all worked fine.
Links are in the What you Need section above, and in the instructions below.

Section 1.0
I had a USB stick which I had used to install server 2012 R2 initially.  It was a bootable stick with the installation files copied to it.
I copied the contents of this stick to a directory on my C drive.
This worked fine.


page 3:
Section 2.1
Screen shot is in German, but the instructions have English, so I was able to follow.
Here is an English screen shot of RMPrepUSB




Download and install RMprepUSB http://www.rmprepusb.com/documents/release-2-0
Start the RMPrepUSB program
Select the FAT32 and Boot as HDD options in section 4
Hit Prepare Drive in lower left, and say ok when it asks to proceed.

FYI, after running RMPrepUSB, the stick is not really bootable,  It won't be bootable until you finish section 2.3


page 4&5:
Section 2.2
 http://www.msfn.org/board/topic/149612-winntsetup-v386/
Download link for winntsetup is at the end of the first post.
Extract the files from the .RAR file, I used 7 zip to extract them.
I extracted the files to a folder in my desktop, to make it easy to get to.

Run this program.  It needed to download something else, I said OK, and it ran.

Select VHD in the lower left





Make sure it is fixed size, and pick a location and name for the VHD file.


VHD Size


The VHD size matters because the smaller the VHD, the more RAM you have for system use.  The VHD size is subtracted from the amount of RAM you have, and anything left is available for system RAM.
I found a utility to make a VHD larger, but I haven't found an easy way to make it smaller.  And that makes sense, it is easy to make it larger, you just have to add some space to the VHD.  It would be hard to make it smaller, to figure out what you can safely remove.
First time, I made a 12G VHD, per the instructions, but I decided that was bigger than I needed.
So, I redid it, using 10G for the size.  Note that it won't make a fractional size, I actually tried to make it 10.5, but it made it 10G instead.
Note:  After installing Server 2012 datacenter gui version, and updating a few drivers, and installing my usb audio driver, the size was about 9.2G.
If you have Audiophile Optimizer, you can use this to compact the OS, and it saves about 1.5G.

So, I made a 10G fixed size VHD.
Select OK, and it will create the VHD.

Select Tweaks, and make it look like this:

I may make multiple VHDs, say one for MQN, another one for bug head, etc.
I am going to try some free utilities that are supposed to resize VHDs.  Hopefully, you can easily change the VHD size later.

page 6 and 7
Section 2.3
"Select Location of Windows Installation Files" is a little tricky, I didn't read the instructions carefully enough the first time I did this.
You need to find the directory where you copied the files of your windows installation disk, and then go to the "sources" subdirectory, and then find and select "install.wim".


Make sure "Select location of Boot drive" points to the USB stick you made in Section 2.1.

Make sure you choose the GUI version of the installation in "Options Edition" at the left bottom

Page 7
Section 2.4
This is where I diverge from the instructions.

Finish Server2012 installation on VHD
Reboot your PC after finishing Section 2.3, and when booting up, go the your PC's bios boot up menu.
I have to push F11 when my PC is booting up, to get this menu.
Choose to boot up from the USB stick you made in Section 2.1.  Don’t boot from your hard drive.

You'll get a screen with boot choices, choose the VHD option.
For me, the other option was Windows 7.

It should boot up and start installing the OS.  Follow the screen instructions and let the OS install.  At some point it will reboot (maybe more than once), just make sure you boot from the USB stick again, and choose the VHD option again.

You should end up with a running Server 2012 OS(or whatever OS you're installing).

Make sure it is stable, let it reboot a few times to make sure it boots up OK.  Don't install the updates.  I did this once, but it used a lot of memory, so I don't recommend installing the updates.  However, the updates are mostly for security, but since this is just my audio PC, I'm not worried about security.


Note that I have a license code for Server 2012, that I had to enter during the install.  I don't know what happens if you use the eval version.

CHECKPOINT

At this point, you should be able to boot up and run your VHD.
Do not proceed unless you can boot up and run your VHD, and it looks like a freshly installed OS.


Basic Setup of Server2012 VHD
So now you should do all the "basic" setup kind of things, the same type of things you did when you first setup Server2012 or whatever OS you're installing.

I updated some low level drivers at this point.  The drivers you upgrade will depend on mainly on your motherboard.

FYI, I installed the following:
Renasas usb3 driver (For PCIE USB Card)
Intel chipset driver
Realtek PCIE Ethernet

Setup internet explorer and added adobe reader

I also performed section 2.5 Server-Manager Autostart de-activate from the German instructions, so server manager doesn't start up when you boot up the os.
You can do it by opening PowerShell, and then copying the three following lines into powershell.

New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon' -Name AutoAdminLogon -Value 1

New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon' -Name DefaultUserName -Value "Administrator"

New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon' -Name DefaultPassword -Value XXXXX

Replace XXXXX by the admin password choosen during Windows installation.
 or

  1. Run regedit.exe
  2. Navigate to
    HKEY_LOCAL_MACHINE\Software\Microsoft\Windows NT\CurrentVersion\winlogon

  3. Set or create the following keys
    (DWORD)  AutoAdminLogon = 1
    (String) DefaultUserName = Your user name
    (String) DefaultPassword = Your password

USB audio drivers:
EXd usbaudio driver (could not make work)
amanero driver 1.057

After you've installed the basic drivers you need to make your PC operate correctly, reboot into Windows 7.  It will probably boot into windows 7 if you do nothing.  Or else get into your startup boot screen, and select the windows 7 disk drive to boot from.  Or boot for the usb stick again, but pick windows 7 instead of the vhd.

I made a copy of the VHD, and saved it as a "baseline".  If you ever mess up a VHD, or want to try something new, start with a copy of the baseline, and go from there.
I made other “baselines” as I went along, when I knew I had a stable copy with more stuff I wanted.

The VHD file you want to copy is located and was named during this step from Section 2.3


Using this picture as an example, the VHD is located in C:, and is named Audio_full.vhd

Just copy this to a large usb stick, or another drive that has enough space.

Run EasyBCD to add VHD to boot menu

If you haven't done so, install EasyBCD
EasyBCD
Go to the bottom of the page, click on the Register (for the free version).  It will take you to a download page, and you can click on download.  You don't have to register if you don't want to.

Start EasyBCD.
Right click on it, then run as admin.
I always use run as admin when I use EasyBCD.

Select "Add New Entry" from the left side of the menu.
Follow these instructions.

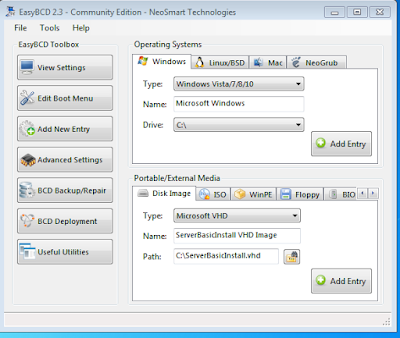

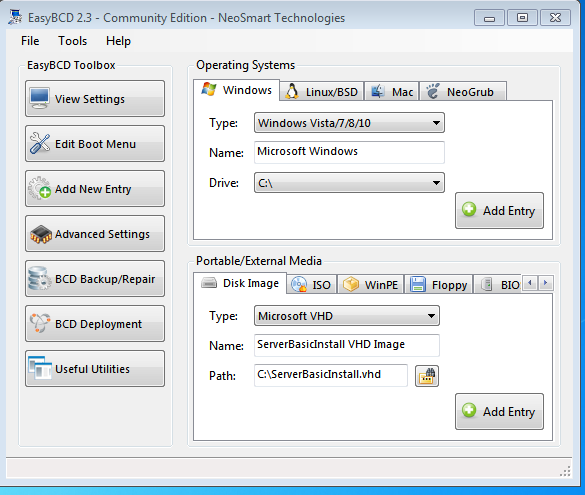

EasyBCD VHD boot

Set the path to point at your vhd file.
You can change the name to make it more descriptive of your file.
Select Add Entry in bottom right

Check the boot menu, and you can select the VHD as the default boot drive if you want.
easybcd changing-default-entry

Select Edit Boot Menu on left.

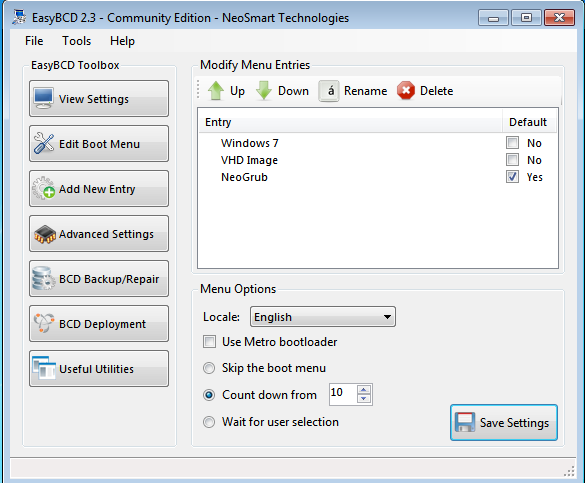

For the screen below, I had name the VHD as "VHD Image", and I have already installed NeoGrub, which I will discuss later.

You can also change the timeout time
Click Save Settings when done.

Reboot, and make sure the new boot menu works, and you can boot up your VHD from it.

You may have a problem booting the VHD.
I ran into a problem when I first tried to boot the VHD, associated with loading "winload.exe" on bootup.


The problem is described here, in the first post of the thread.
winload thread
It is caused by a mismatch in the dates of winload.exe and bootmgr.

You need to update bootmgr file to newer one (used by windows server 2012 R2).
Turn off your pc (if necessary).  Connect your Server 2012 R2 OS disk to your pc.  Boot up into windows 7, open file explorer and open the Server OK disk, probably d:.
bootmgr will be in the root directory.

Make a BOOT_BCD directory in the root directory of C

Right click on Computer, then select Manage, then Disk Management (under Storage on left),


Right click on the System Reserved 100 MB partition
Select Change Drive Letter and Paths…


Select Add

Select Browse, then + (to the left of C:\, to expand C:),






select BOOT_BCD, OK, ok

Now you can open the BOOT_BCD directory with file explorer.



Rename the existing bootmgr to bootmgr.sav.
Answer yes and ok a bunch of times to do this.

Copy the newer bootmgr from the Server OS disk to BOOT_BCD
For me, the newer bootmgr is dated 11/21/2014, older windows 7 version is 11/20/2010

reboot and make sure it boots ok into the VHD with the new bootmgr file.  It should boot with no problems.


CHECKPOINT

At this point, you should be able to boot up and run your VHD.
Do not proceed unless you can boot up and run your VHD, booting up without the USB boot stick you made earlier.
FYI, it is now booting with information from the boot sector on the Windows 7 DD.

Now reboot back into Windows 7.

Finish VHD install, and Ram boot
OK, now you have a working VHD of Windows Server, or whatever OS you are working with.
Now you need to the following so you can load the OS into Ram, and run from Ram.

The rest of the instructions assume you performed the previous instructions
"Make a BOOT_BCD directory in the root directory of C"
If you can boot the VHD without them, you don't have to copy the new bootmgr file, but you do need to do the instructions up to that point, so you can open the BOOT_BCD directory.

Setup Firadisk and disable Driver signature enforcement
Bootup the VHD.

Open internet explorer, and download the winram files
unzip to your desktop to folder named WinRAM.  You should be able to drag and drop from the zip file to do this.

Open WinRam folder, then open the Firadisk directory.



Doubleclick on TestSignRootCA.reg to run it

Doubleclick on TESTSIGNING_ON.cmd to run it.

Right click on the firadisk.inf file (setup information file type), and select install

Go to Control Panel, then System, then Device Manager.
Click on Storage Controllers, and make sure you see the FiraDisk Virtual Disk Emulator.

Reboot.

Boot may fail because Firadisk is not "signed"



If it fails, press Enter

Press F8


Select "Disable Driver Signature Enforcement", and press Enter
It should boot into your VHD now.
You have to do this to boot with Firadisk installed, until you fix a few things.

After Windows starts, open a command window, and type the following:
bcdedit -set Testsigning on
Close the command window.

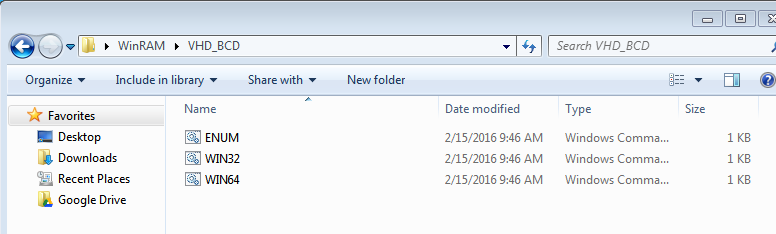

Open the WinRAM folder, then open the VHD_BCD directory

Select ENUM.cmd and WIN64.cmd files, right click, and copy

Open the BCD_Boot directory, and paste the ENUM and WIN64 cmd files here

Drag and drop the BCD icon to on top of ENUM.cmd
It will open a dos window and run a script file

Drag and drop BCD to on top of  WIN64.cmd
It will open a dos window again, last two commands will fail, that is OK.

Reboot into the VHD file on disk, and make sure the VHD file still boots up OK.
You should not have to go through the "Disable Driver Signature Enforcement" thing now.


Add NeoGrub to boot OS from RAM

Reboot back into Windows 7

Open EasyBCD

To run an OS from RAM, you need to use Grub4dos.  But easyBCD has its own version of Grub called NeoGrub that is easy to install and use.  It just takes a few mouse clicks to install

Here are the instructions for NeoGrub
So, go to the "Add New Entry" screen, select the NeoGrub tab in the top section, then install  NeoGrub.

Select "Configure", and you get an edit screen.  The screen lets you edit what is the equivalent of the Grub menu.lst file.

Add the following, but replace ServerbasicIntall.vhd with the name of your vhd.  It would be “Audio_full.vhd” if you followed the instructions literally.


#default to first entry (title)
default 0
#set timeout in seconds
timeout 5

title Server2012 R2 - FiraDisk RAMDISK
find --set-root --ignore-floppies /ServerbasicInstall.vhd
map --mem /ServerBasicInstall.vhd (hd0)
map --hook
root (hd0,0)
chainloader /bootmgr


Exit the program, and reboot.

On the new startup boot screen, select NeoGrub

This should take you to a screen that lets you select Server2012 R2 - FiraDisk RAMDISK
Select this.

Booting will take a while now, it has to load the OS into RAM.

You should now have an OS that runs out of RAM.

At this point, you can boot back into the VHD from the first boot up menu (the VHD file on disk), and make changes.  Any changes you make while running out of ram will be LOST on the next bootup.

Configuring EasyBCD
Some other things you can do now.
Boot windows 7 again, and run EasyBCD

Select “Edit Boot Menu” on left.
Check the default box by NeoGrub to make it the default choice.
Change the “Boot default OS after xx seconds” to whatever you want.


Click Save Settings.

Now, reboot.

Don’t do anything, it will default to NeoGrub on bootup, and then in NeoGrub will default to the one and only choice, because of these lines in the NeoGrub configuration file


Other information

If you have multiple VHD files you want to use, you can add lines to the end of the Neogrub configuration file
Run Windows 7, and open EasyBCD
Select Add New Entry on left
Select NeoGrub button on top
Select Configure button

Add these lines.  The title line should be different from the first title, make it descriptive for whatever this vhd file contains.
Change ServerXXX.vhd to the name of your other vhd file.

title Server2012 R2 - FiraDisk with XXX
find --set-root --ignore-floppies /ServerXXX.vhd
map --mem /ServerXXX.vhd (hd0)
map --hook
root (hd0,0)
chainloader /bootmgr

It will default to the first choice, and if you don’t change the default timeout you will only have 5 seconds to pick this other choice on bootup.





My notes:

## default num
# Set the default entry to the entry number NUM. Numbering starts from 0, and
# the entry number 0 is the default if the command is not used.
#
# You can specify 'saved' instead of a number. In this case, the default entry
# is the entry saved with the command 'savedefault'.
# WARNING: If you are using dmraid do not use 'savedefault' or your
# array will desync and will not let you boot your system.
default 2

## timeout sec
# Set a timeout, in SEC seconds, before automatically booting the default entry
# (normally the first entry defined).
timeout 10

find --set-root /Myl33t7.vhd

map /Myl33t7.vhd (hd0)

root (hd0)

chainload /BOOTMGR


Install windows 7

install windows
install chipset drive
install ethernet driver
setup home network
install renasys usb driver

install amanero driver

download chrome
setup chrome

download drive

Change screen resolution

download and install EasyBCD 2.3




Download bootice
unzip, and install to desktop

rightclick on it, and run as admin
select c: as the destination disk




You can edit menu.lst in BOOT_BCD folder
I used bootice to edit menu.lst

For now, I left it.

Boot back into Server2012

In WinRAM folder, open VHD_BCD directory
Select ENUM.cmd and WIN64.cmd, right click, and copy
Go to C:\Boot directory, right click and paste, to copy ENUM and WIN64 files here

Drop and drag BCD on top of ENUM.cmd
It will open a dos window and run a script fild

Drop and drag BCD to WIN64.cmd
It will open a dos window again, last two commands will fail, that is OK.

Now you can boot from RAM.

First, I would make sure the VHD file still boots up OK.


reboot into Windows Server, should boot from RAM now


Grub4Dos Install (not required, for reference only)


Open winram folder, then Grub4Dos folder,

change Install_gldr to look like the following

The main change is this line:  Set STORE=C:\BOOT_BCD\Boot\BCD.  I also deleted the echo off line so you can make sure it works.


Setlocal

::Set path to bcdedit.exe (e.g. C:\Windows\System32\bcdedit.exe)
Set BCDEDIT=C:\Windows\System32\bcdedit.exe

::Set path to BCD Store (e.g. C:\boot\BCD)
Set STORE=C:\BOOT_BCD\Boot\BCD

for /f "tokens=3" %%A in ('%BCDEDIT% /store %STORE% /create /d "GRUB4DOS" /application bootsector') do set guid=%%A
%BCDEDIT% /store %STORE% /set %guid% device boot
%BCDEDIT% /store %STORE% /set %guid% path \grldr.mbr
%BCDEDIT% /store %STORE% /displayorder %guid% /addlast

endlocal
pause
exit

copy grlder, grlder.mbr,  and menu.lst to BOOT_BCD folder (did not use Install_Grldr2)


Copy this to the screen

title Boot Windows 7
find --set-root /bootmgr
chainloader /bootmgr

save it as menu.lst in the root directory.
Note that you can change the title to whatever you want, just make sure the line starts with "title", and this is case sensitive, so all lower case.

Make a copy of the grldr and grldr.mbr files, and copy to your root drive.

reboot.  You should see a see a grub4dos menu on startup with the one option, Boot Windows 7 in my case.  Select it, and it should boot your os.

I had trouble the first time I did this.  I was messing with figuring out bootice, so this may have caused my problem.  I went through the steps again, and it worked fine after doing it a second time, in this order.



Add the following to the menu.lst file

title Server2012 R2 - FiraDisk RAMDISK
find --set-root --ignore-floppies /ServerbasicInstall.vhd
map --mem /ServerBasicInstall.vhd (hd0)
map --hook
root (hd0,0)
chainloader /bootmgr

title basicVHD.vhd - normal boot
find --set-root /basicVHD.vhd
map /basicVHD.vhd (hd0)
map --hook
root (hd0, 0)
chainloader /bootmgr

This page grub info, explains what the previous commands do.


Reboot.  From reboot screen, select NeoGrub.

If it won't boot up, you may need to
Select the VHD, but push F8, then select "Disable Driver Signature Enforcement"

Once it works, I would make a copy of the vhd, and save it as a new baseline.

Now you can add other drivers, programs, audiophile optimizer or whatever you want.  You could add them to your baseline, or make different versions of vhd with different programs on them.

You can add the option to boot  multiple vhds into grub
example.

Edit menu.lst with notepad
Open file explorer

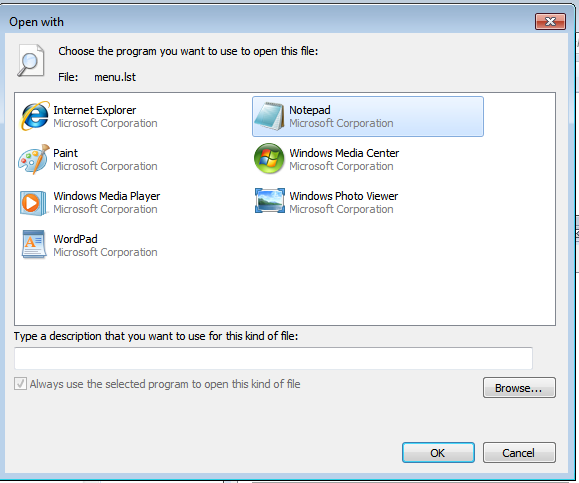

Select menu.lst, then select properties


Push Change button (after Opens with)

Select Notepad, then OK
Select Apply in next Window.
Now, menu.lst will appear as menu, and if you right click you can edit with notepad





This page is powered by Blogger. Isn't yours?
